Sheriff CSMâ„¢

Asset List View

The Asset List view, Environment > Assets & Groups > Assets, provides a centralized view of your assets.

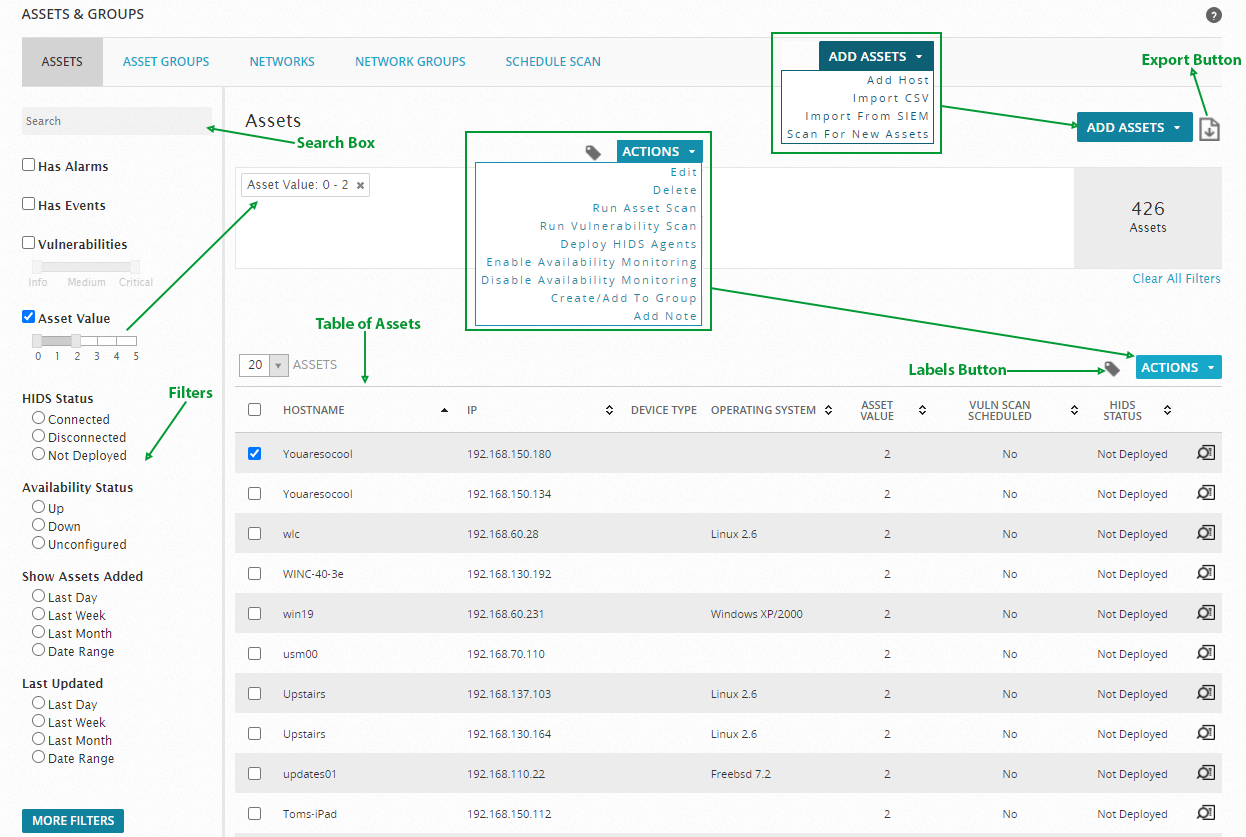

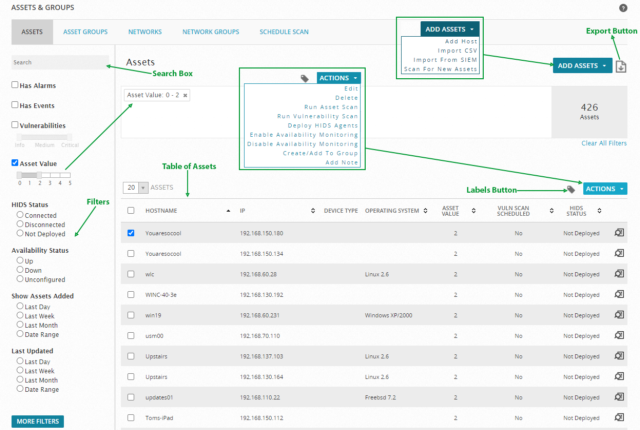

Assets and Groups page showing individual assets.

For field descriptions,

Asset List field descriptions

Column / Field NameDescription
Hostname Name of the asset.
IP IP address for the asset.
Device Type Device type of the asset.
Operating System Operating System on the asset.
Asset Value Asset value assigned to the asset.
Vuln Scan Scheduled Whether a vulnerability scan has been scheduled and enabled.
HIDS Status The HIDS status for the asset (Connected, Disconnected or Not Deployed).
Magnifying Glass Opens the detail page of the asset.

Clicking on an asset displays the status summary of this asset.

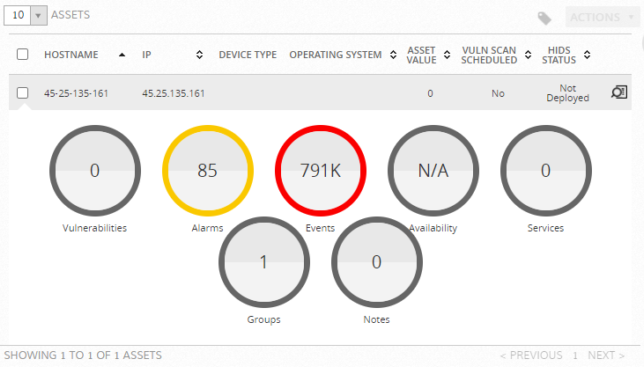

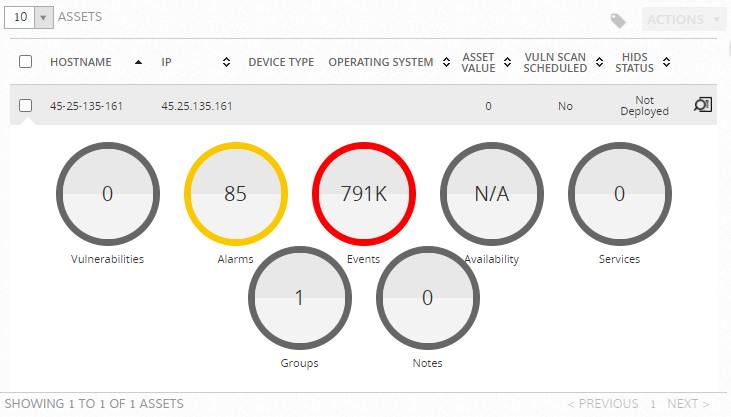

Status summary of an individual Asset.

For meanings of the circles and their colors,

Asset status circle color definitions
TypeColorDescription
Vulnerability Gray No vulnerabilities.
Green Contains Info level vulnerabilities.
Yellow Contains one or more Low and/or Medium vulnerabilities.
Red Contains one or more Serious and/or High vulnerabilities.
Alarm Gray No open alarms on this asset.
Yellow Contains open alarms with risk between 1 and 5.
Red Contains open alarms with risk greater than 5.
Events Gray No events for this asset.
Yellow Contains low and/or medium risk events.
Red Contains high risk events.
Availability Gray Availability status of this asset is not enabled or pending.
Green The asset is up.
Yellow The asset is unreachable.
Red The asset is down.
Services Gray Availability monitoring has not been enabled or is pending for one or more services on this asset.
Green 75%-100% of the ports/services on this asset are available.
Yellow One or more services on this asset have an unknown status.
Red A Critical or Warning status exists on one or more services on this asset.
Groups Gray Displays the number of groups the asset belongs to.
Notes Gray Displays the number of notes this asset has.

Next...
