Sheriff CSM™

Message Center

Sheriff CSM uses the Message Center to centralize all in-system errors, warnings, and messages. They also include external messages sent by Sheriff about product releases and feed updates. You can only access the Message Center through the web UI. All messages are displayed in the timezone configured for the user, but there are stored in the database as UTC (Universal Time Coordinated). You may see both displayed in some messages, as shown in the image below.

To view messages in the Message Center
  • Click the message icon (Viewing Message Center) in the header menu.

    The envelope icon shows the number of unread messages. If the number exceeds 99 messages, the icon displays 99+.

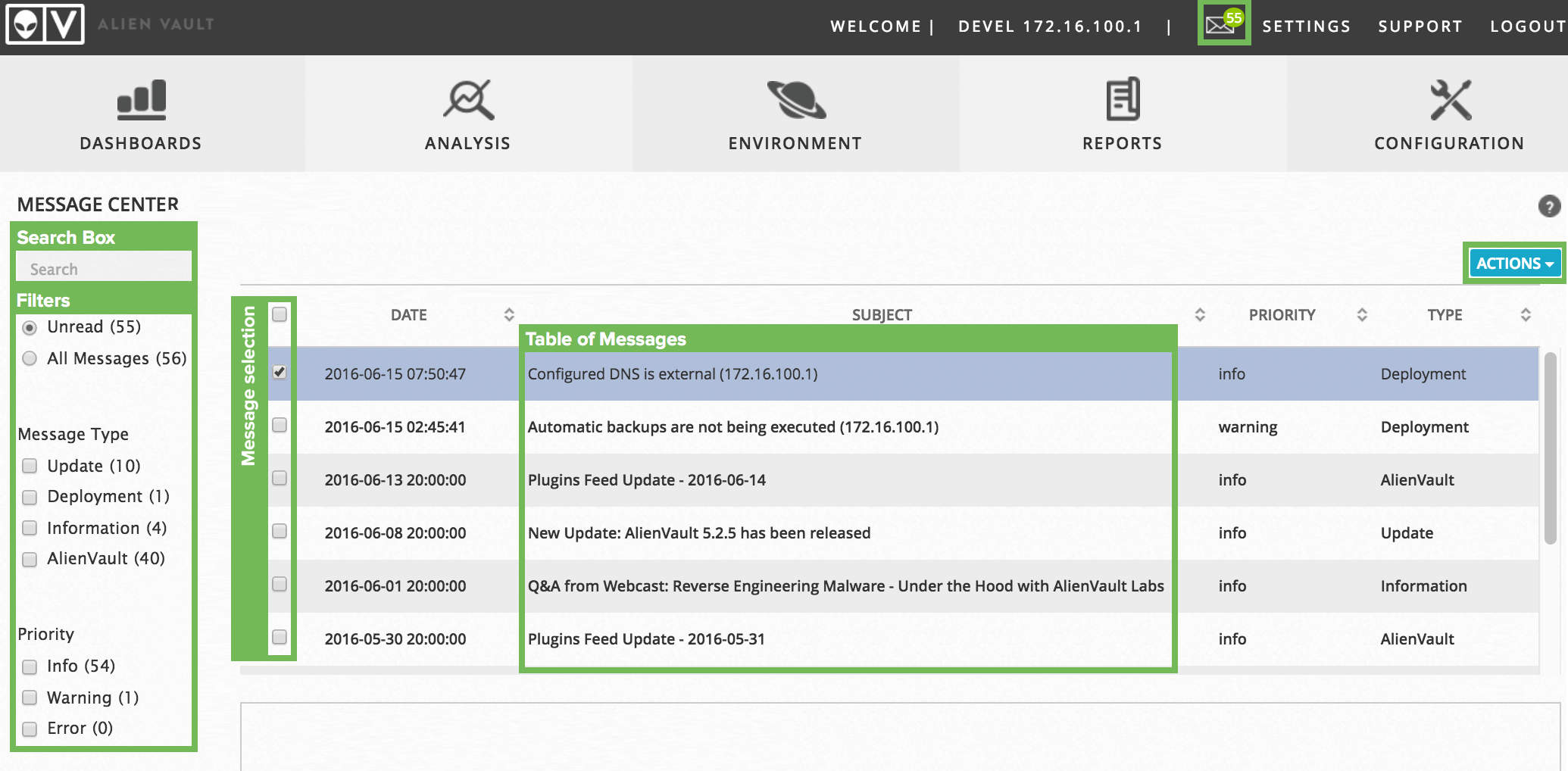

Message Center page from USM header menu.

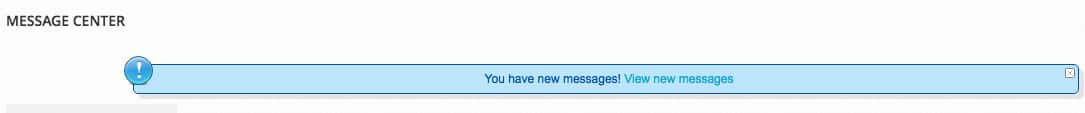

If a new message arrives while you are on the Message Center page, Sheriff CSM displays an alert.

[Message Center page with alerts.

These are the types of messages you might see in the Message Center.

Message TypeDescriptionExamples
Sheriff Messages from Sheriff. Plugins Feed Update - 2015-11-24
Deployment System-generated messages regarding your Sheriff CSM instance. Configured DNS is external (172.16.100.1)
Information Miscellaneous messages regarding your Sheriff CSM instance. Become a Sheriff Certified Security Engineer
Update System-generated messages regarding updates. New Update: Sheriff 5.2 has been released

All messages are sorted by priority in the system.

Message priorities in the Message Center

Message PriorityDescriptionExamples
Info These messages provide useful information to the user.
  • Sheriff Customer Success Initiatives - Letter from the CEO.
  • Enable log management.
  • Plugin version out of date.
Warning These messages specify that something in the environment has changed, and that Sheriff CSM is no longer functioning as it was configured. Warnings are also generated as precursors to Errors when Sheriff CSM detects a situation that could potentially disrupt normal operation if allowed to continue.
  • Configuration backup could not be completed.
  • Log management disrupted.
  • Deputy connection lost.
Error These messages concern something in Sheriff CSM that is no longer working or will stop working in a short period of time. These issues should be resolved as soon as possible to prevent service disruption.
  • Disk space is critically low.
  • The remote system is not connected to the Sheriff API.

Search and Filter Messages

A search box in the upper left-hand corner of the Message Center lets you search all message content.

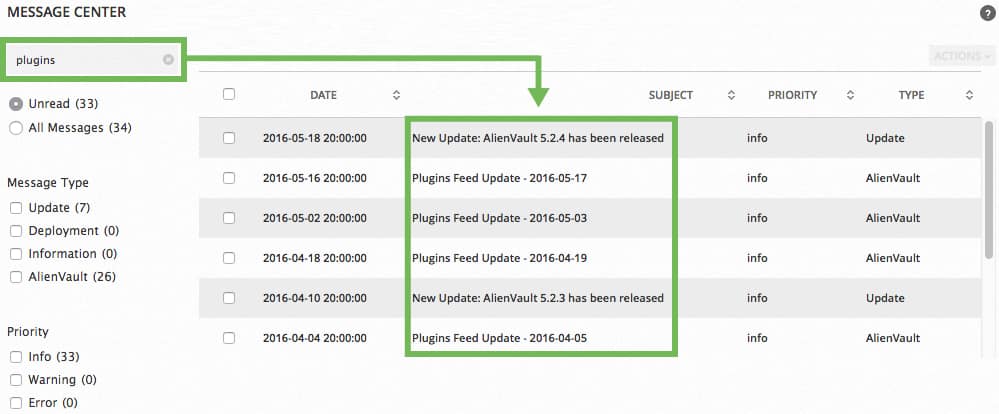

Message Center page with Search option highlighted.

The message filters that appear beneath the search box allow you to focus on a subset of messages. See the table below for a description of what each filter means.

Search filters in the Message Center

Filters Description
Unread (n)
All Messages (n)
Use this filter to show messages that have not been read or all messages. The table of messages displays the unread messages in bold until the user clicks on them.

The number between parentheses indicates the number of messages for each option.
Message Type Use this filter to choose which message type to display. See Message Types for more information.

The number next to each filter indicates the number of messages for each type. These numbers correspond to the first filter option that you choose. For example, if Unread is selected, and you choose Deployment under Message Type, the number in parentheses shows unread messages for Deployment.
Priority Use this filter to choose which message priority to display. See Message Priorities for more information.

The number next to each filter indicates the number of messages for each priority. These numbers correspond to the first filter option that you choose. For example, if All Messages is selected, and you choose Warning under Priority, the number in parentheses shows all warning messages.
Note: You can select several filters at the same time by clicking the checkbox next to each filter. The table of messages displays the messages that match the checkbox(es) selected.

View a Message

Messages are displayed in a table format. By default, this table is sorted by date, from the newest to the oldest. All columns, except for the Actions column, can be sorted in ascending () or descending () order by clicking the () icon. The triangle icon indicates which column is being sorted currently.

Each line in this table corresponds to a message.

Messages can come from the following sources
  • External server — These messages are sent from Sheriff. Every hour the system checks if there are new messages. The server hosting the message is messages.sheriff.com, which uses port 443. The external server signs all messages and Sheriff CSM checks the signature to verify the authenticity.
  • System status — These messages correspond to the operation of Sheriff CSM in real time. For this reason, they update frequently.

    They consist of the following status types:

    • Backup task in progress.
    • One or more plugin configuration files have been deleted.
    • Unable to analyze all network traffic.
  • User Activity — These messages correspond to user activities within Sheriff CSM. For example, when a user executes a backup on Configuration > Administration > Backups, and the backup ends with an error, this will generate a message.

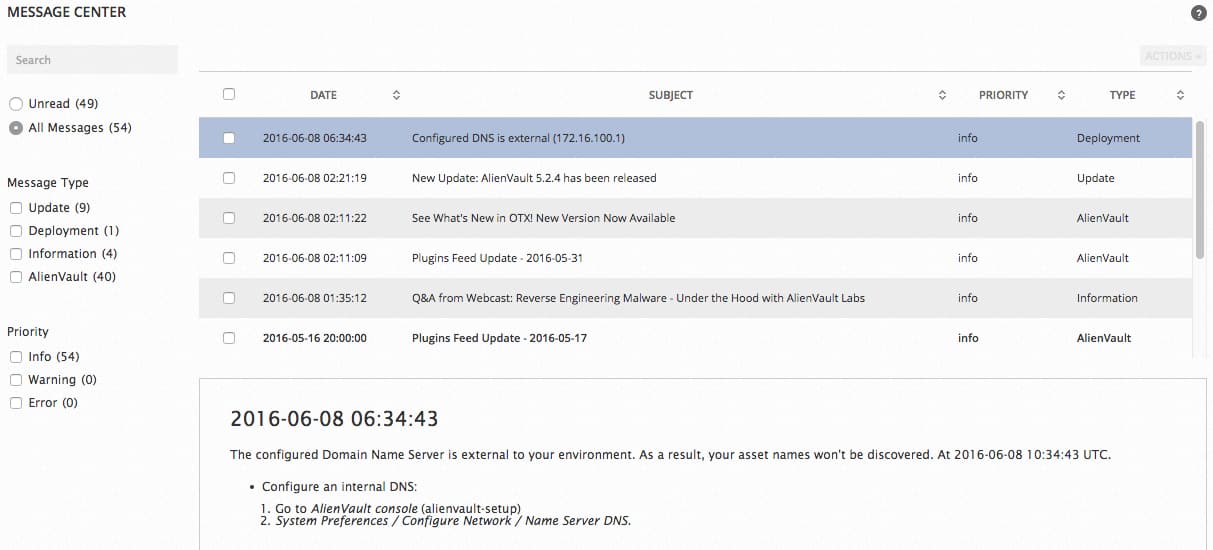

    Message Center page with User Activity highlighted.

To view the entire message
  • Click the message line in the table.

    The message details appear below the table, as shown in the previous illustration.

Delete a Message

In version 5.2 and earlier, only Sheriff CSM admin users can delete messages in Message Center. Starting from version 5.3, a normal user can delete a message after the admin user has granted him the Message Center - > Delete Messages permission in a template. For instructions on how to use a template, see Control User Authorization with Templates.

To delete a message
  • Select one or more messages and click Actions > Delete.

    A confirmation message displays, asking you to confirm.

Important: Deleting a message deletes it from the system. There is no way to recover the message.
